全自动玻璃深加工生产线上下片方案2/Auto Loading Unloading System For Glass Processing Lines介绍

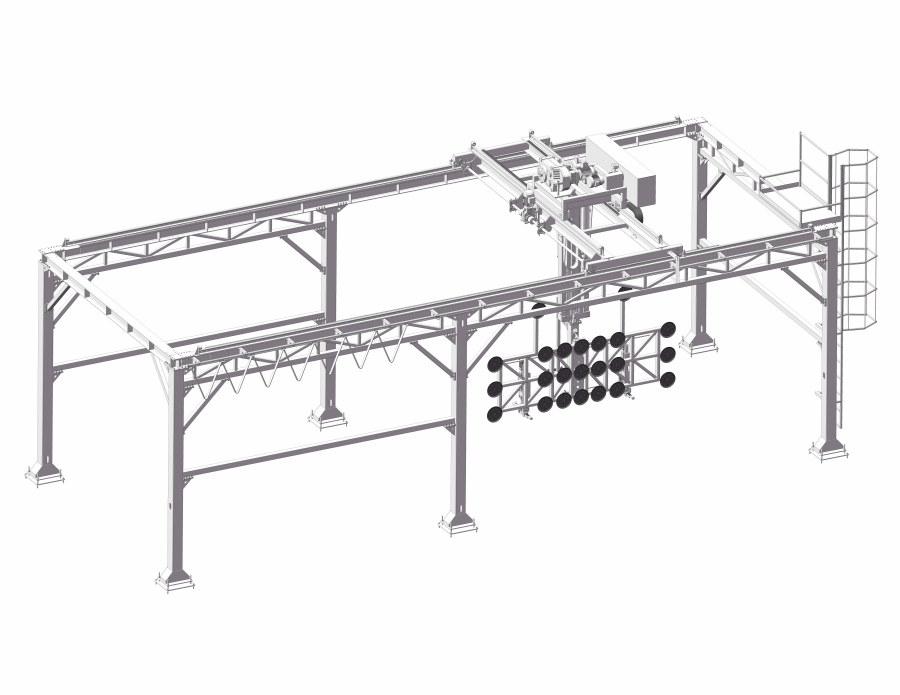

产品说明： 中空线自动上下片 Auto Loading unloading system for IG line 中空上片台动力系统采用伺服电机。 移动升降翻转电机变速度均为无级变速， 传送采用变频电机；减速机使用精密行星减速机。 采用全闭/半闭环控制系统，对产品定位精准，系统运作稳定。 The vertical loading table use servo motor;The variable speed of the moving/rising and tilting motor are infinitely variable speeds,conveying use variable frequency motor;and precision planetary reducer; Adopts full-closed loop control system for precisely positioning and stable running. 中空下片台XYZ轴采用伺服电机。 The X,Y,Z axis of Gantry unloader use servo motor. 下片台XY 轴移动采用齿轮齿条机构，运行平稳。 The X,Y axis of Gantry unloader use gear mechanism.Make sure stable running. 采用全闭环控制系统，对产品定位精准，系统运作稳定。 Adopts full-closed loop control system for precisely positioning and stable running. X 和Y轴行走和上升下降的动作由伺服马达控制操作，吸盘吊能自动检测到玻璃居中吸取然后下 片到玻璃架上。吸盘吊能前后，左右，上下移动。 The Xand Y axis movement and lifting up&down function of the suction cup lifter controlled by the Servo motor.The suction cup system can lift up and down,move forwards and backwards,move left to right. 自动完成中空成品的分箱下片 Unloading to different boxes automatically by gantry unloading system.
产品说明：
主要应用于轿车/货车前挡玻璃的预热抽真空处理。
For windshield pre heating and vacuum processing after assembling with PVB.
采用西门子PLC 控制系统，西门子温度模块采集温度，触摸屏显示。
With SIEMENS PLC control system,SIEMENS temperature module collects temperature and display on screen.
可全自动或者手动操作，炉腔内受热均衡，产品质量高。
Comes with Auto and manual modes,furnace inside heating evenly.
设备有故障报警功能，触摸屏显示报警状态，PLC 输出蜂鸣器提示。
The system has fault alarm,alarm status shown on screen,buzzer warning alarm.
产品性能符合GB-9656 汽车用安全玻璃质量标准。
The product performance is accord with the quality standard of GB-9656 automotive safety glass.
抽真空炉/Pre-heating Vacuum Fu
产品说明：
在线理片系统用于磨边前，钢化前，中空前和夹胶前玻璃储存和分拣。让产线更合理，更节能，更高效。
The sorting system is used for glass storage and sorting before edging line,tempering furnace,IG line and laminated line.To make more reasonable,energy saving and high efficient production line.
立式理片系统
Vertical Sorting Buffer
立式理片笼Vertical Sorting Buffer
对接ERP 有效跟踪
Connecting ERP system for tracking
成品分架
Sorting rack for finished products
更有序，更高效
Organized and high efficiency
分架系统
Glass Assorting System
卧式理片系统
Horizontal Sorting System
余料架
Offline Storage System
玻璃理片系统 /Glass Sorting Sy
产品说明：
该真空夹胶炉采用控制方式分为手/自动
控制模式，整机控制系统性能可靠，故障率低，维护、操作方便，工作效率高。
The Furnace has manual/auto mode,reliable control system,
low failure rate,convenient operation and high efficiency running.
PLC 程序控制，可见屏幕界面操作，工艺参数可调，温控准确等特点；
PLC program control,visible interface,adjustable technical parameters and accurate
temperature control.
西门子PLC 进行人机对话控制方式，系统可靠性高。SIEMENS PLC and reliable control system.
采集温度用西门子温度模块，显示和设定温度在触摸屏，使用高级权限登录才能更改重要数据。
Temperature collecting by SIEMENS module,temperature display and setting on the screen.
夹胶炉/EVA Laminated Furnace
产品说明：
连续自动化生产，西门子 PLC 控制。产量大，成品率高。可根据客户的玻璃加工尺寸定制。
Continuous production.Controlled by SIEMENS PLC.
High Capacity and high windshield production rate.Can be customized.
箱式热弯炉
Box Type Bending Furnace
主要应用于高铁/动车/机车前档玻璃
The box type bending furnace is for high-speed railway/motorcar/automotive windshield bending.
计算机操作系统使用窗口动态图像，支持DB、WSDL、PLC等多种方式的数据集成。
The operating system uses window dynamic images to support data integration in DB, WSDL,PLC.
热弯炉的操作和程序的设置都由控制面板执行，安装 无限点易控操作软件，设备出现故障时，有警示和记录，在计算机上查找故障根源，产品性能符合汽车及 建筑热弯玻璃质量标准。With warnings and records.fault can be found in PC, convenient for trouble shooting.The performance is according with automotive and architecture glass quality standard.
连续式小车前挡风玻璃热弯炉/Con
