产品说明：
主要应用于轿车/货车前挡玻璃的预热抽真空处理。
For windshield pre heating and vacuum processing after assembling with PVB.
采用西门子PLC 控制系统，西门子温度模块采集温度，触摸屏显示。
With SIEMENS PLC control system,SIEMENS temperature module collects temperature and display on screen.
可全自动或者手动操作，炉腔内受热均衡，产品质量高。
Comes with Auto and manual modes,furnace inside heating evenly.
设备有故障报警功能，触摸屏显示报警状态，PLC 输出蜂鸣器提示。
The system has fault alarm,alarm status shown on screen,buzzer warning alarm.
产品性能符合GB-9656 汽车用安全玻璃质量标准。
The product performance is accord with the quality standard of GB-9656 automotive safety glass.
抽真空炉/Pre-heating Vacuum Fu
产品说明：

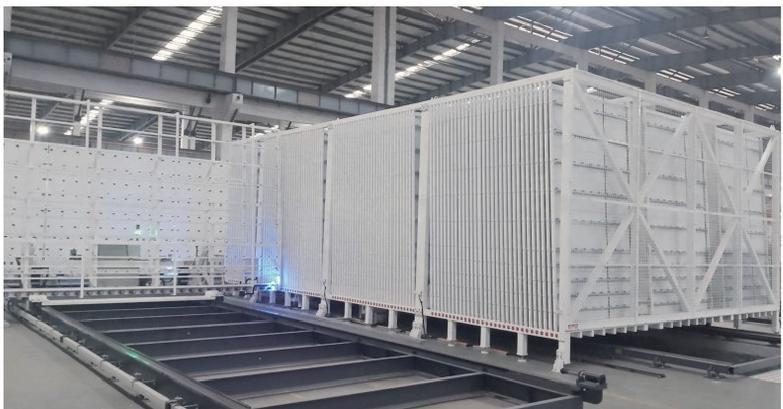

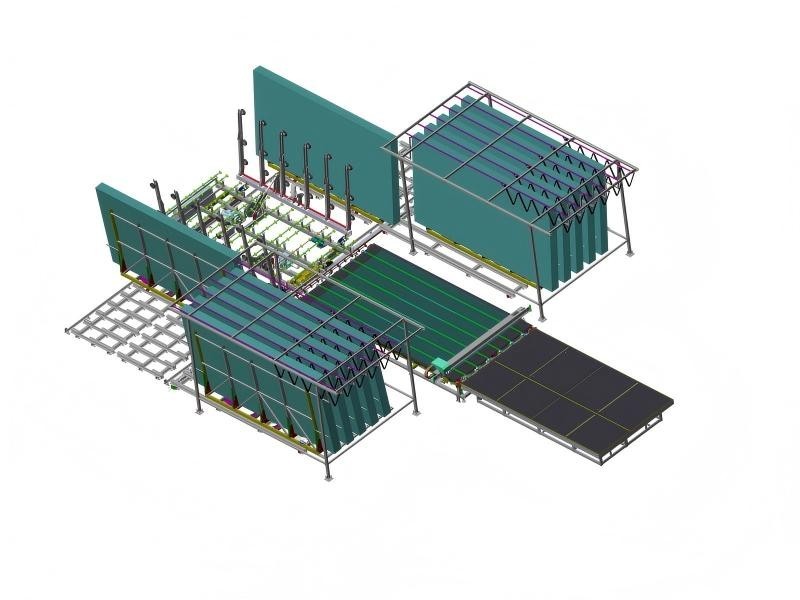

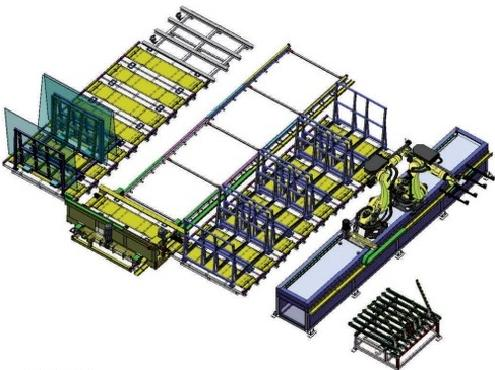

在线理片系统用于磨边前，钢化前，中空前和夹胶前玻璃储存和分拣。让产线更合理，更节能，更高效。
The sorting system is used for glass storage and sorting before edging line,tempering furnace,IG line and laminated line.To make more reasonable,energy saving and high efficient production line.

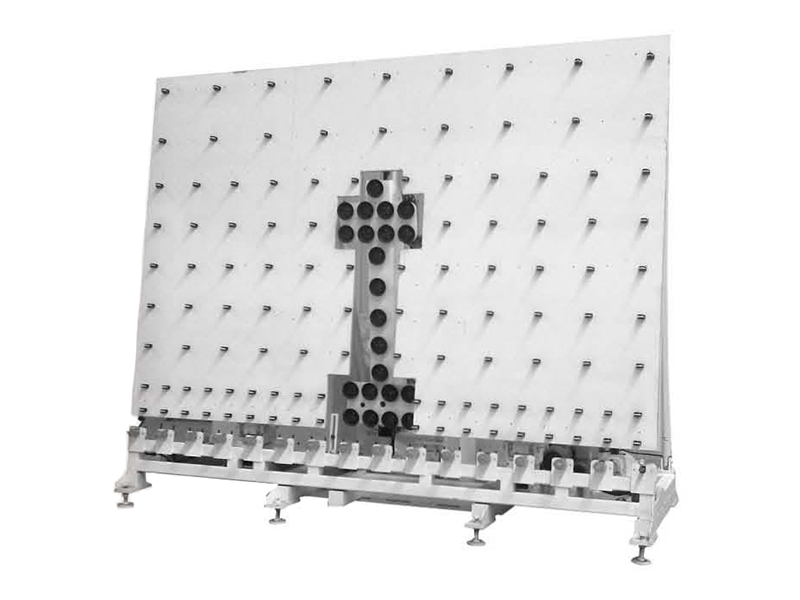

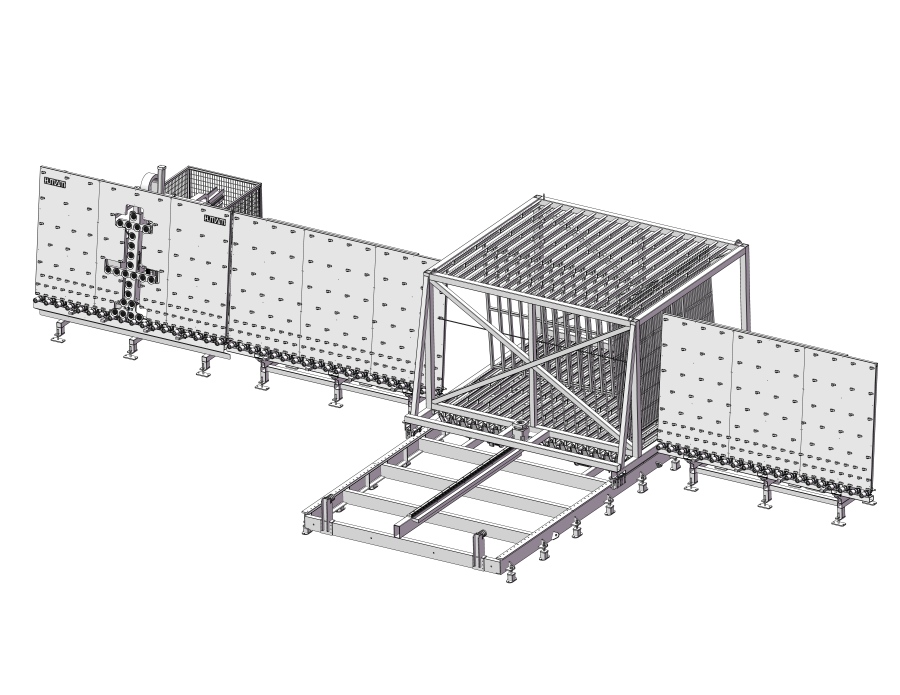

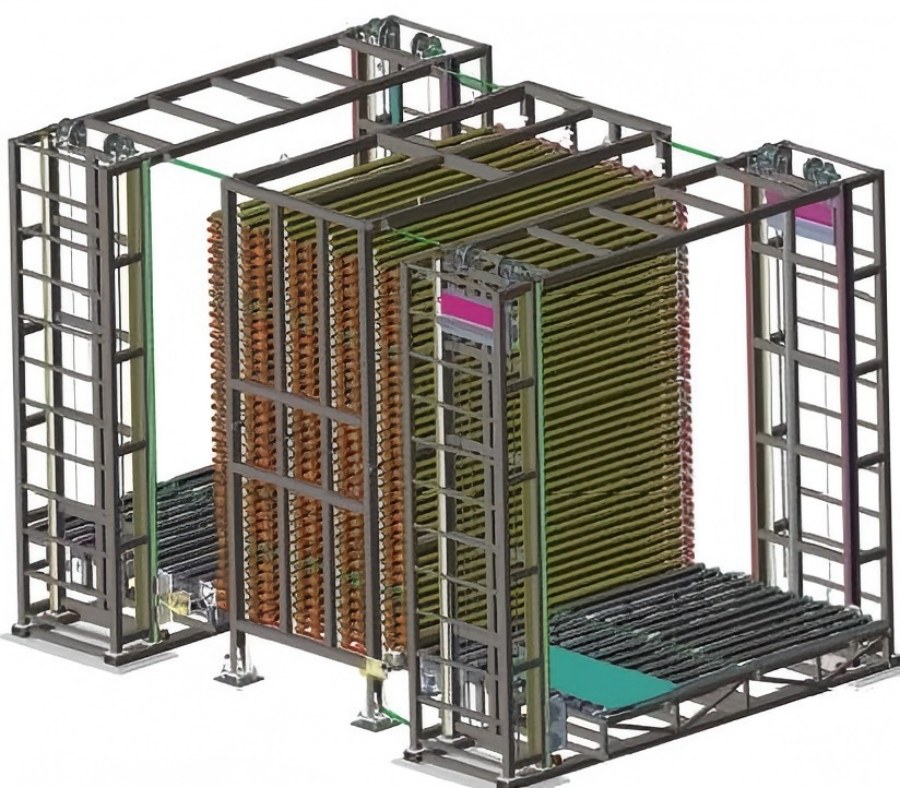

立式理片系统
Vertical Sorting Buffer
立式理片笼Vertical Sorting Buffer
对接ERP 有效跟踪
Connecting ERP system for tracking
成品分架
Sorting rack for finished products
更有序，更高效
Organized and high efficiency
分架系统
Glass Assorting System
卧式理片系统
Horizontal Sorting System
余料架
Offline Storage System
玻璃理片系统 /Glass Sorting Sy
产品说明：

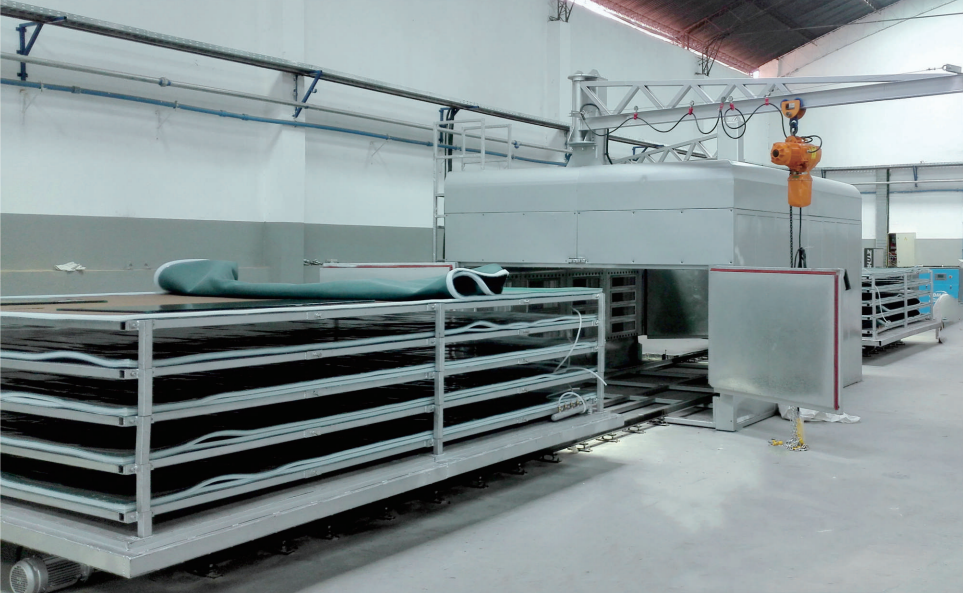

该真空夹胶炉采用控制方式分为手/自动
控制模式，整机控制系统性能可靠，故障率低，维护、操作方便，工作效率高。
The Furnace has manual/auto mode,reliable control system,
low failure rate,convenient operation and high efficiency running.
PLC 程序控制，可见屏幕界面操作，工艺参数可调，温控准确等特点；
PLC program control,visible interface,adjustable technical parameters and accurate
temperature control.
西门子PLC 进行人机对话控制方式，系统可靠性高。SIEMENS PLC and reliable control system.
采集温度用西门子温度模块，显示和设定温度在触摸屏，使用高级权限登录才能更改重要数据。
Temperature collecting by SIEMENS module,temperature display and setting on the screen.

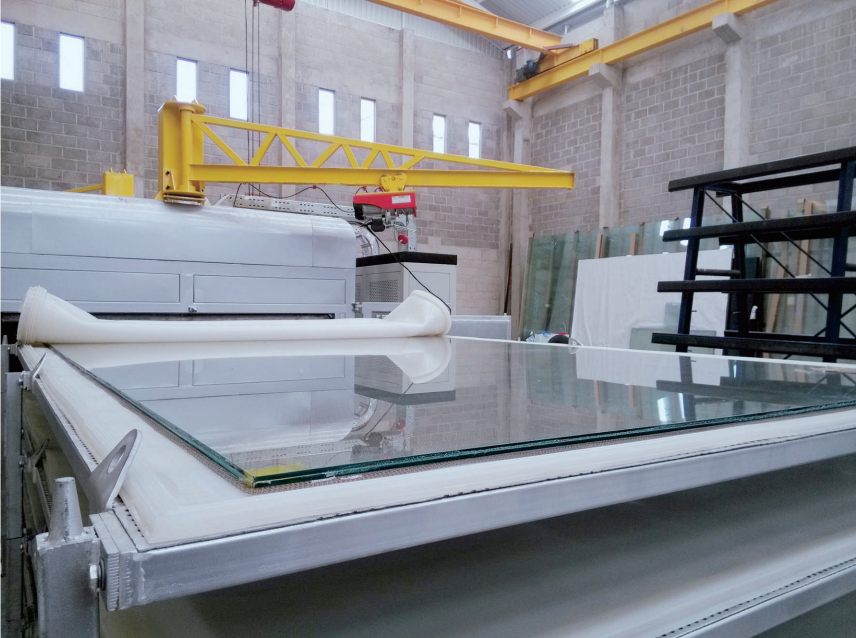

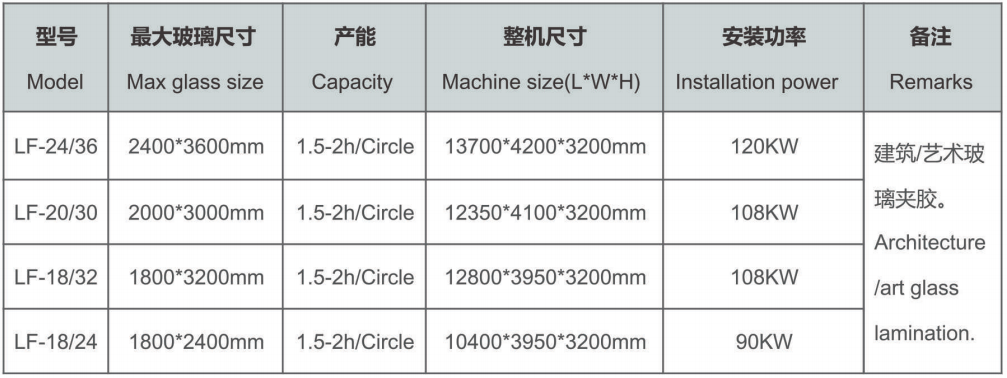

夹胶炉/EVA Laminated Furnace
产品说明：

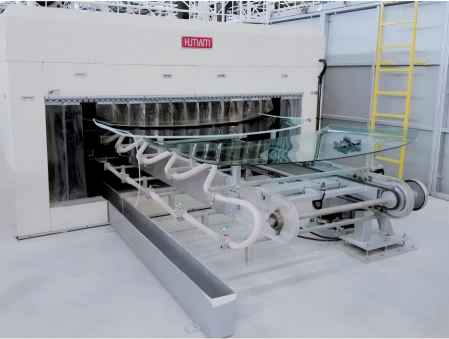

连续自动化生产，西门子 PLC 控制。产量大，成品率高。可根据客户的玻璃加工尺寸定制。
Continuous production.Controlled by SIEMENS PLC.
High Capacity and high windshield production rate.Can be customized.

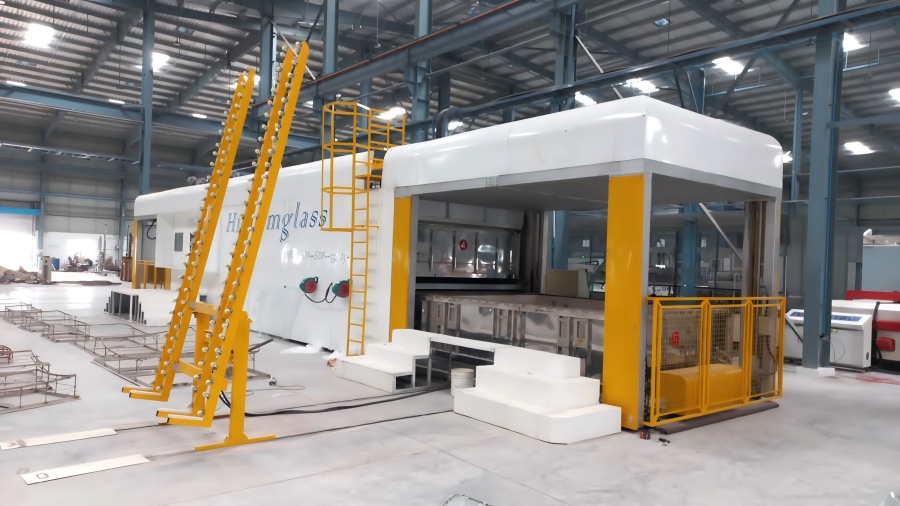

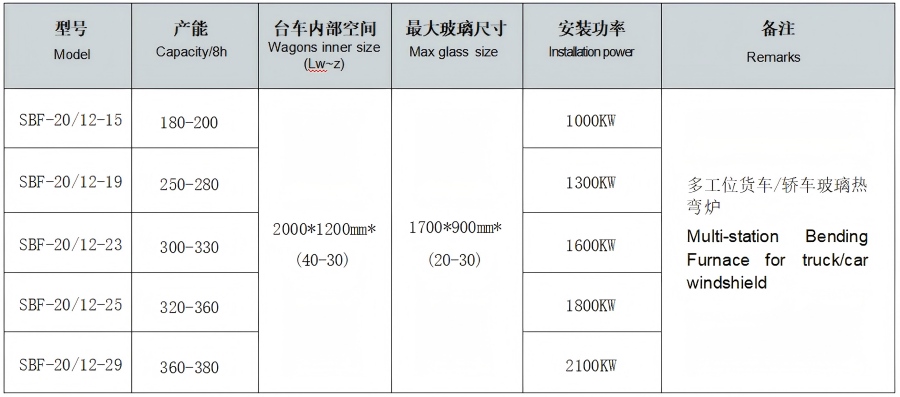

箱式热弯炉
Box Type Bending Furnace
主要应用于高铁/动车/机车前档玻璃
The box type bending furnace is for high-speed railway/motorcar/automotive windshield bending.
计算机操作系统使用窗口动态图像，支持DB、WSDL、PLC等多种方式的数据集成。
The operating system uses window dynamic images to support data integration in DB, WSDL,PLC.
热弯炉的操作和程序的设置都由控制面板执行，安装 无限点易控操作软件，设备出现故障时，有警示和记录，在计算机上查找故障根源，产品性能符合汽车及 建筑热弯玻璃质量标准。With warnings and records.fault can be found in PC, convenient for trouble shooting.The performance is according with automotive and architecture glass quality standard.

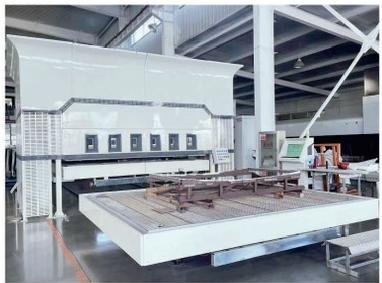

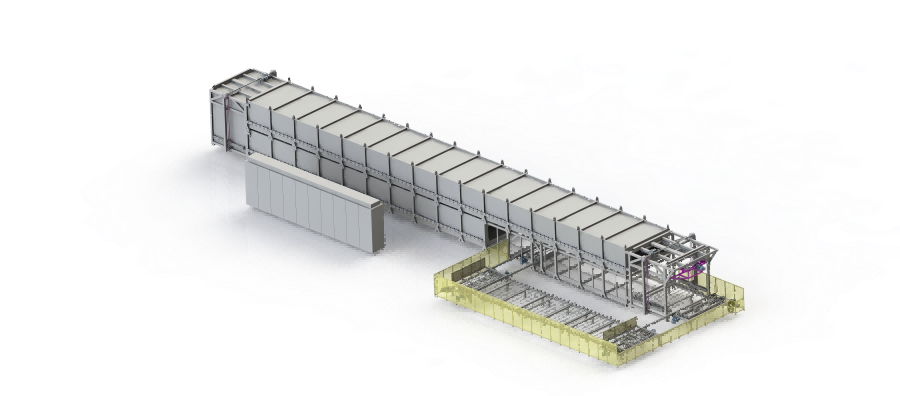

连续式小车前挡风玻璃热弯炉/Con
产品说明：

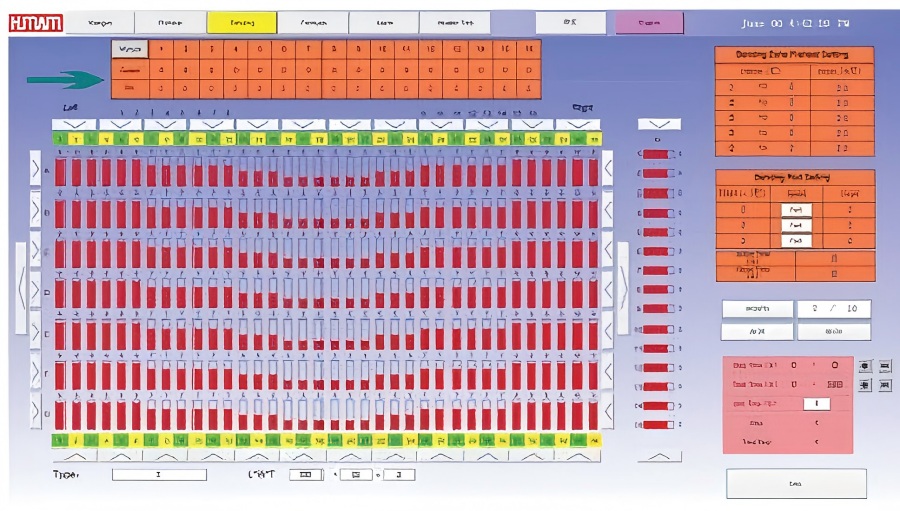

电脑操作系统使用窗口动态图像，便于人机交互对话，热弯炉的操作和新程序的设置都由控 制面板执行(键盘和显示器)。
The PC operation system is window dynamic image,which is good for human-computer interaction,the operation of bending furnace and the setting for new control program all controlled by PC.
在第一次生产过程中手动设置和储存弯曲参数，所有技术参数可以在生产线上修改，并选择保存 或不保存，种类可以达到3000种。
Over 3000 recipes can be saved in the system.
系统包含了安全系统、预警功能，参数的删除可设定权限操作。
Includes the safety system,early alarm function.The parameters can be deleted by operator with permissions.
产品性能：符合GB-9656(2003) 汽车用安全玻璃质量标准。
Product performance:fulfill the GB-9656(2003)standard of the safety glass quality of car/bus.

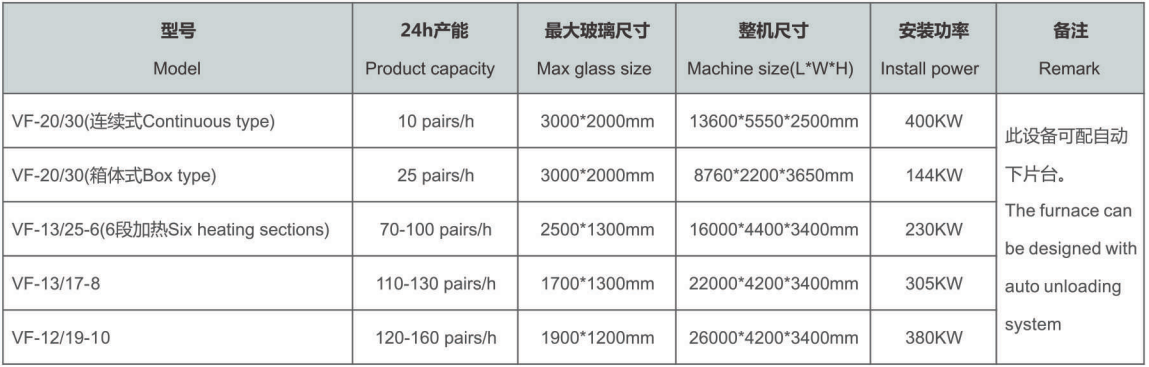

连续式大巴前挡风玻璃热弯炉/Con

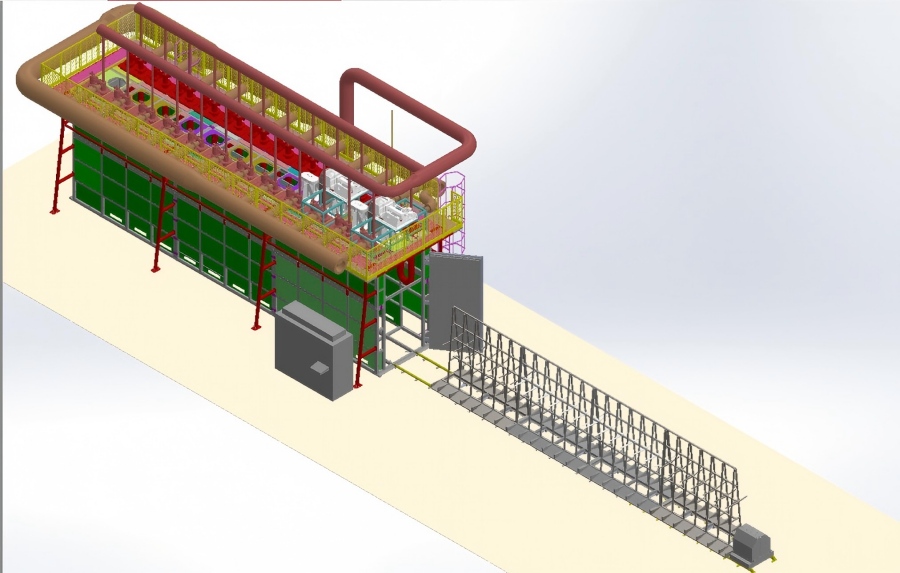

产品说明：

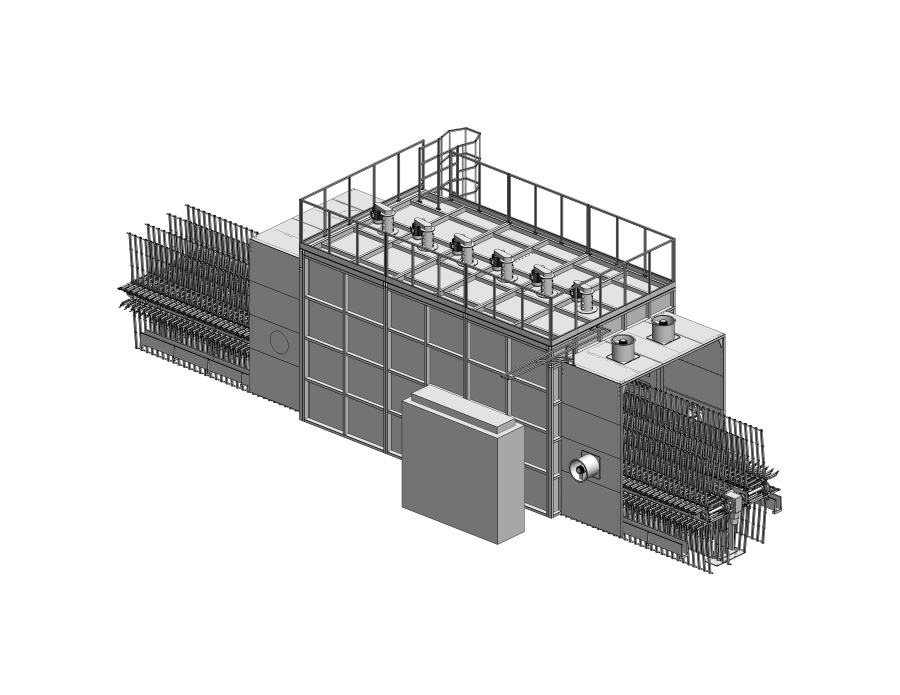

燃气式均质炉主要包括设备本体/燃控系统/电控系统。燃控系统采用烧嘴+辐射 管加热方式，结合连续比例+开关控制系统，使其满足工艺要求。
This Heat Soak Test Furnace with gas heating system includes the machine body, gas heating system and electric control system.Adopting burner (selfpreheating type) radiation heating mode and combining with pulse timing sequence control system to complete gas heating.Combine with continuous proportion and switch control system, make it meet the requirements of production.

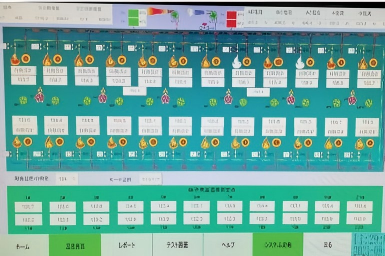

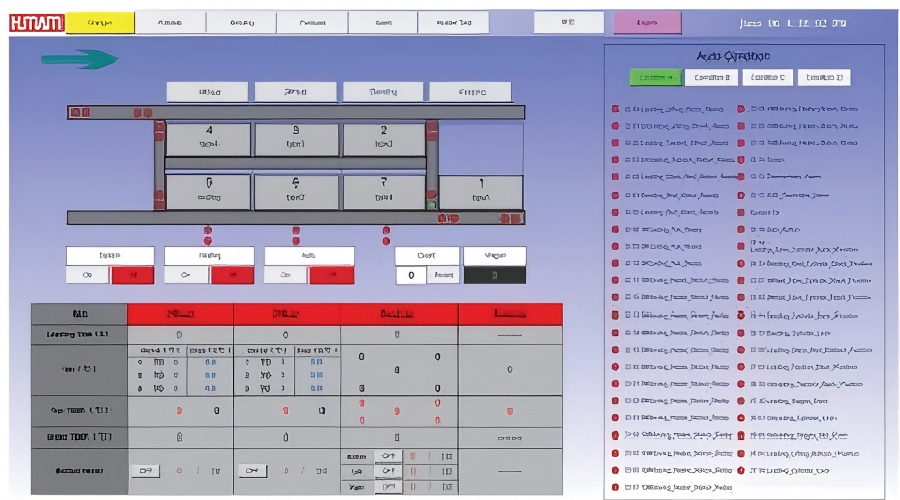

设备的控制和可视化被集成在工艺控制和可视化系统中。可视化系统将提 供必要的总体显示，成批显示和单独显示，带有历史跟踪和报警系统。
The control and visualization of the equipment is integrated into the process
control and visualization system.The visualization system will provide the necessary overall display、batch display and separate display,has history tracking and alarming system.
可通过画面可以调整工艺参数的设定值，而系统也有工艺参数的历史记录和实时跟踪。The set value of process parameters can be adjusted through the screen,the system saves historical records and real-time tracking of process parameters.

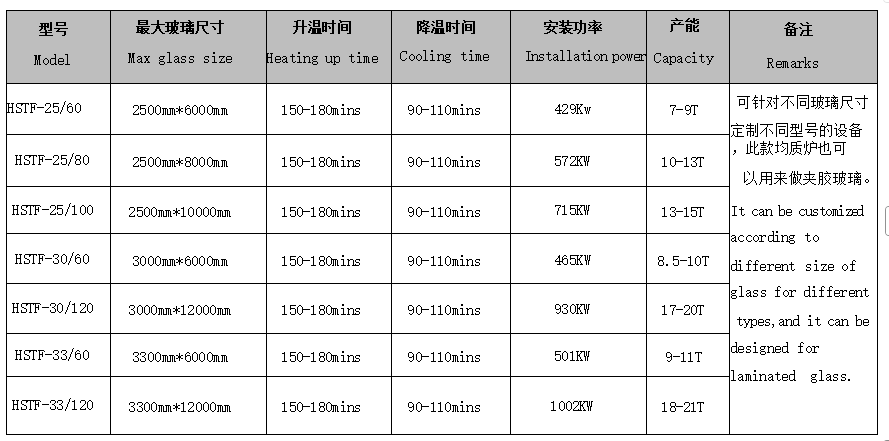

钢化玻璃均质炉-燃气式/Heat Soa
产品说明：
本钢化玻璃均质炉根据欧洲强化玻璃安全性能测试标准设计制造。加热器通断 采用固态继电器，工艺参数及程控使用电脑记忆存储及智能控制，温度调节模式 以PLC为主的电气控制系统自动完成。
The Heat Soak Test Furnace was designed and manufactured according to European safety performance test standard of toughened glass, energization and electricity stoppage of heater adopt solid state relay;technological parameter and program control use computer memory saving and intelligent control, temperature adjustment mode is automatically accomplished by PLC control system.

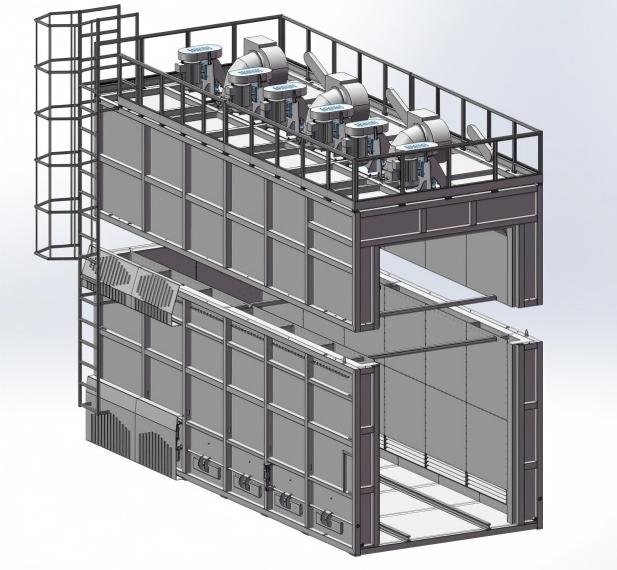

上下分体结构
Top and bottom split structure

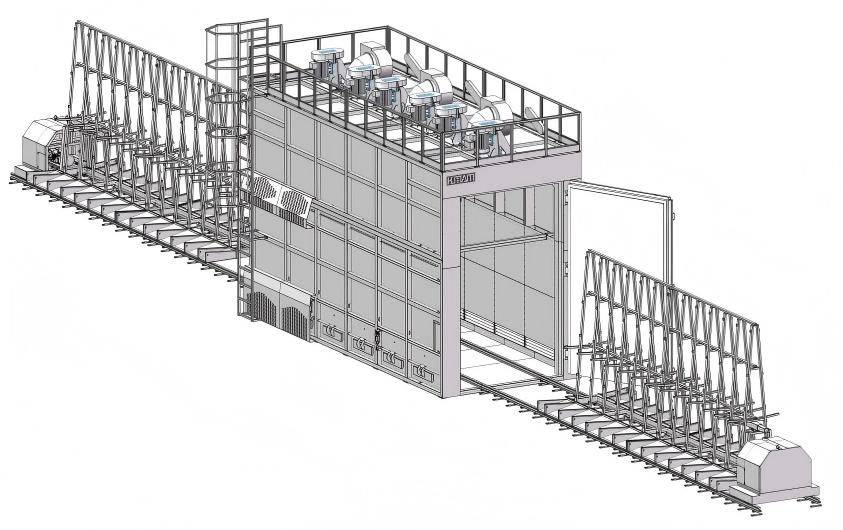

双开门 Heat soak test furnace with two wagons

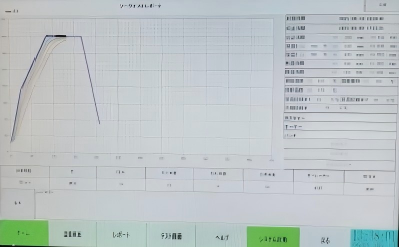

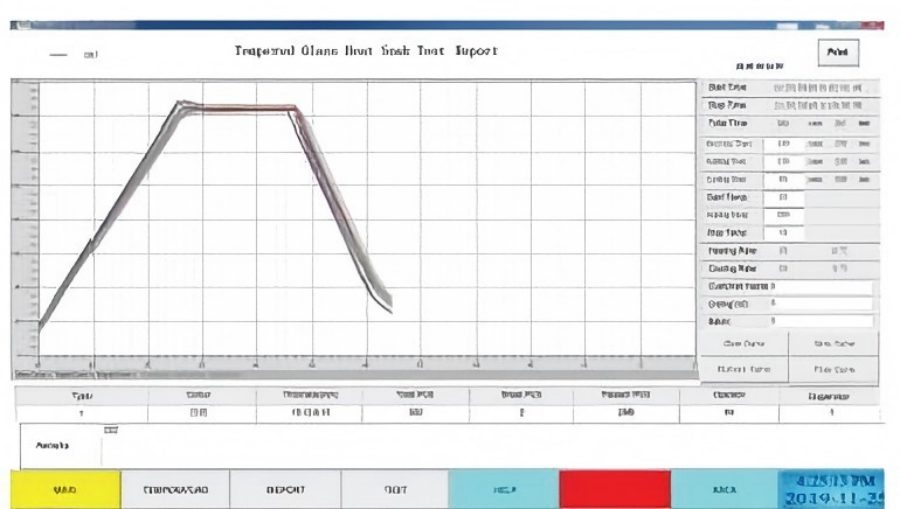

温度曲线自动存储，利用循环风机使炉腔内温度快速、均匀的升温和降温，从而 减少钢化玻璃的自爆。电脑PID智能控制设备的自动加热及冷却，提供玻璃表面温度监视系统。
Automatic saving temperature curve,use convection blower make the temperature in the furnace fast heating and cooling,reduce the self explosion of tempered glass.The automatic heating and cooling are intelligently controlled by computer PID.Provide glass surface temperature monitoring system.
产品性能符合以下标准：
Furnace performance accord with below standard: EN14179-1:2005、EN14179-1:2016、
DIN 18510-4&CE.GB 15763.4-2009

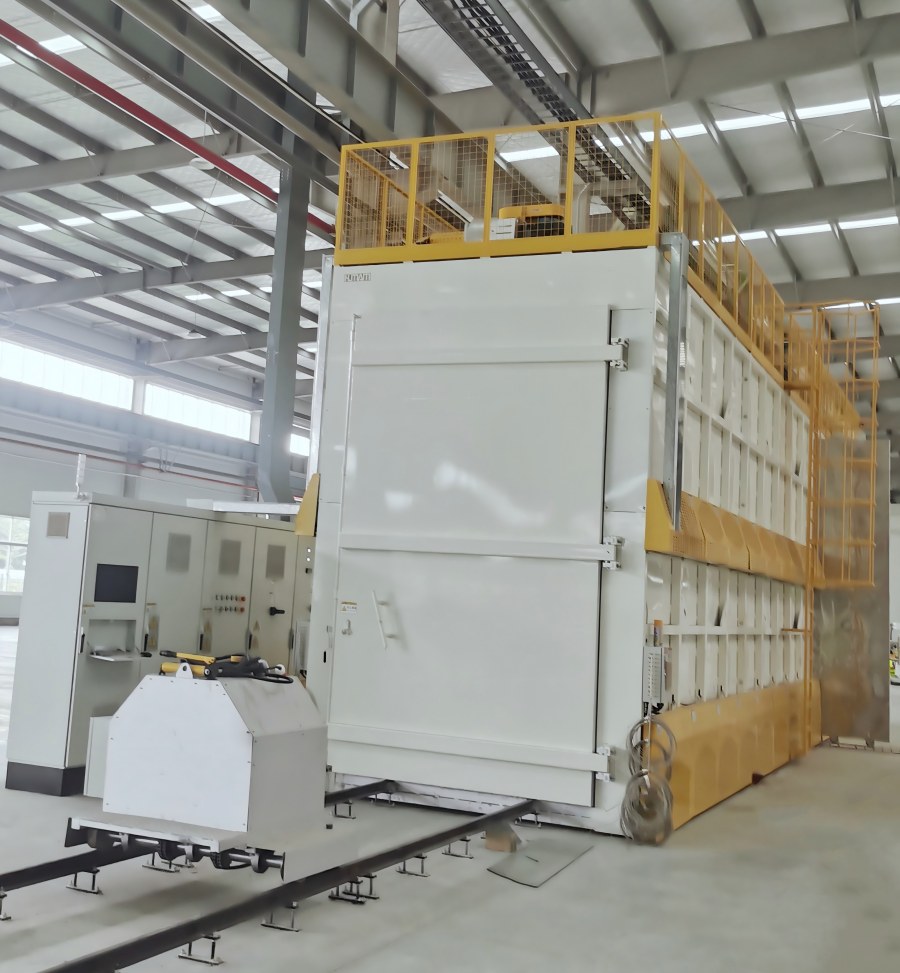

钢化玻璃均质炉-电加热式/Heat S
产品说明：
原片录入：录入方式分2 种：无线扫描枪自动录入、人工手动录入；
Input data of original glass：there are two ways: PDA scanning automatic input and
manual input；

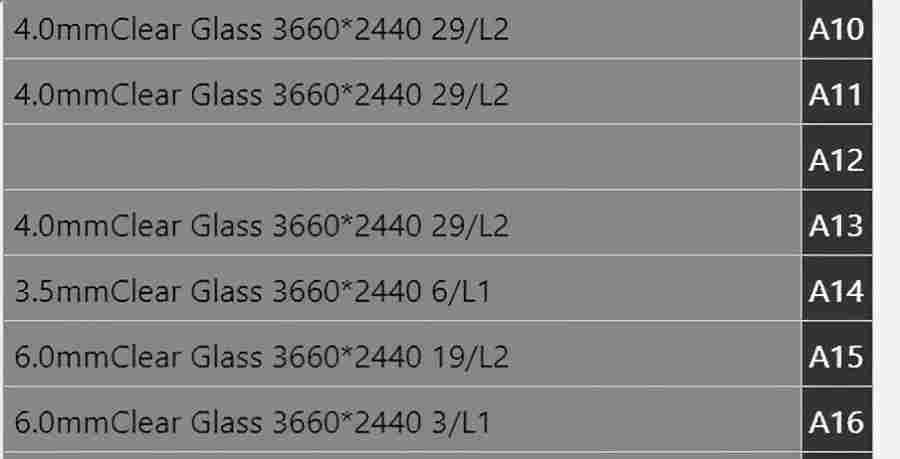

库存管理：建立独立数据库，存储原片信息，用于当前库存状态实时查询。可通过客户端远程访问数据；
Stock control：Setup an standalone database to store the original glass information. The stock data of original glass can be queried in real time.And the stock data can be
accessed remotely through the client；
任务队列：给仓储系统下达任务分全自动方式和半自动方式。半自动方式时，一 次输入多个规格取片任务，顺序执行，换规格时需确认后执行；全自动方式时，单个规格全自动执行；
Task queue:Assign tasks to the storage system modes:full automatic mode and semi-automatic mode.In the semiautomatic mode,can input multiple specifications of glass taking tasks at one time.
库存报表：用于玻璃历史动态记录，只要库存区内玻璃信息有变化都会生成一条记录。永久保存于数据库。
Inventory report:Use to record the dynamic history of glass,a record will be generated when the inventory area's glass information changes,and this record will be permanently saved in the data base.

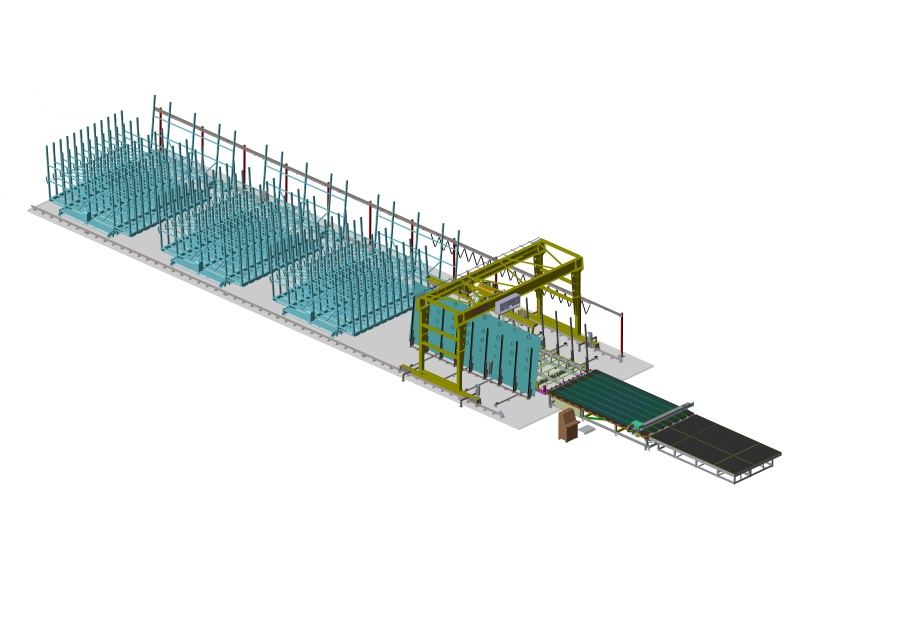

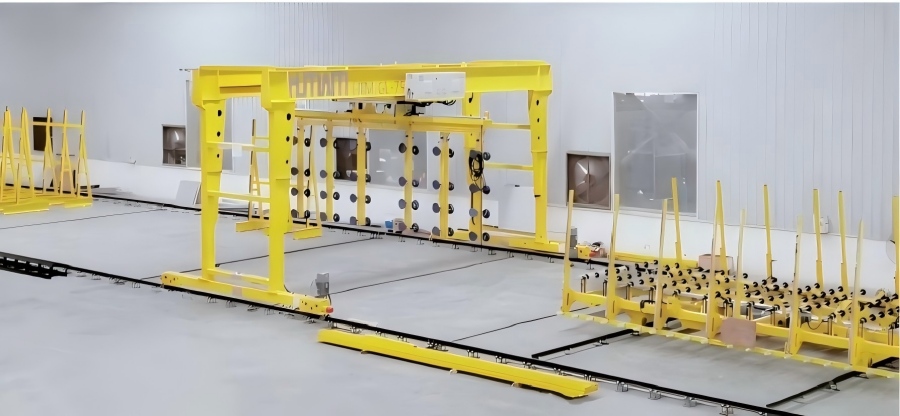

龙门式仓储系统/Glass storage g
产品说明：

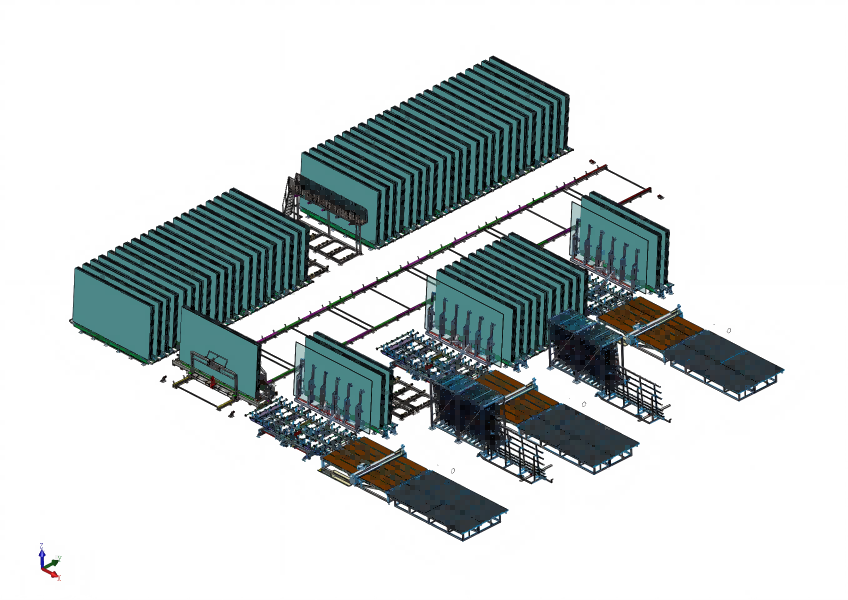

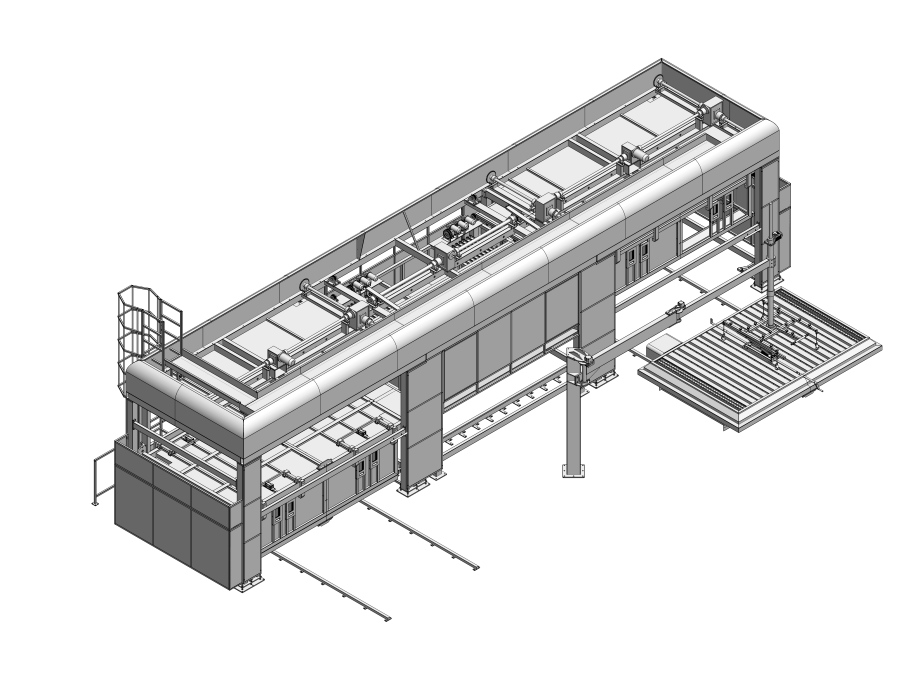

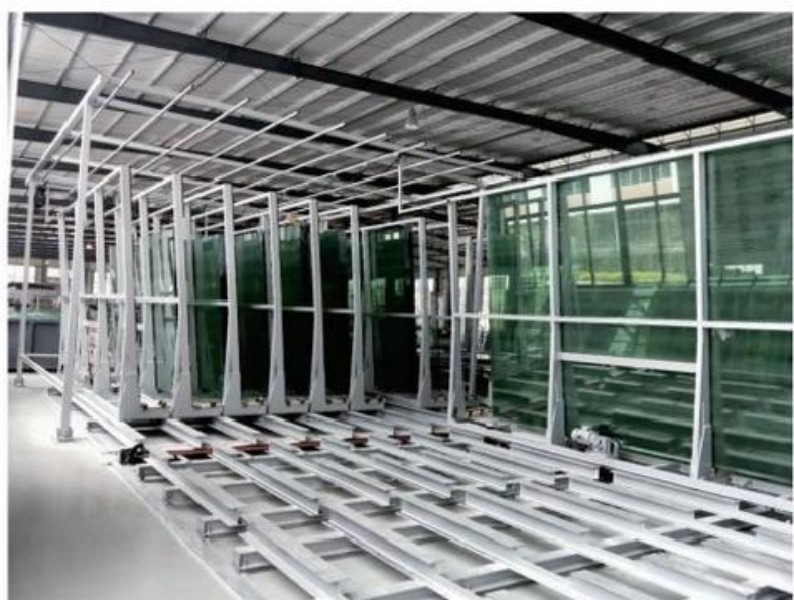

穿梭仓储系统可供给一条或多条切割线；
控制面板包括数字键盘及专用功能键 （可适用于切割线整体控制或者远程控制），主要管理库存区的所有玻璃架的原片数据，其中包括（尺寸，包装数量，厚度，玻璃类型，进货日期，玻璃代码，说明等；
The shuttle system can work for one or more cutting lines；
The control panel includes digit keyboard and dedicated function (can be suitable for cutting line complete control or remote control), which mainly manages the float glass data including (dimension, package quantity, thickness, type, purchase date, glass code, introduction etc) in the storage area；
提供办公室客户端程序，直接可以访问系统中目前穿梭机系统中添加和使用数据，以及剩余的原片的数据（尺寸、类型、厚度、膜系等相关信息）,方便生产和库房对原片的管理。
HUMAM provide the office client end program, which can directly access to the shuttle system data, and the rest float glass data (dimension, type, thickness etc.), which is convenient for production and float glass management.

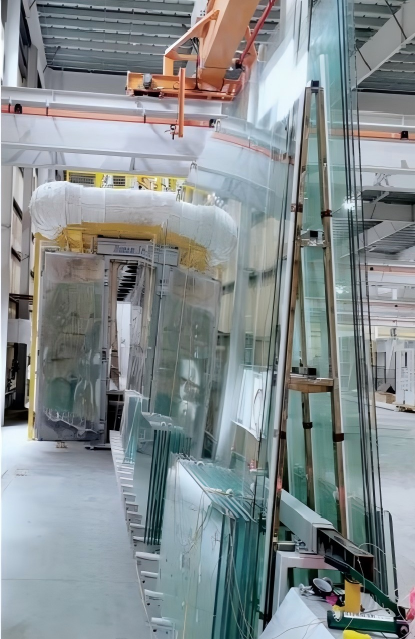

穿梭式仓储系统/Glass storage s
产品说明：

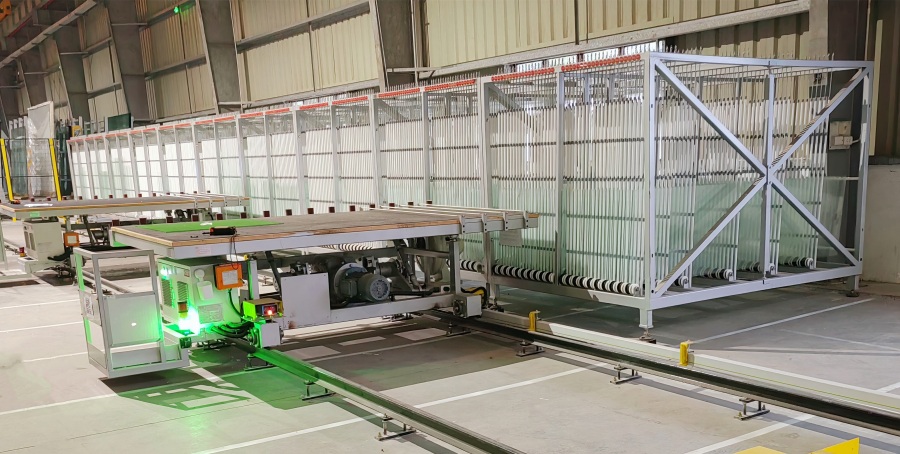

此玻璃自动存储架系统是将玻璃仓储设备和玻璃上片功能结合，由软件程序
控制，实现从玻璃原片仓储到切割机自动切割的一套全新智能存储-送料-上片机取片-输送给切 割机的全自动设备。
This glass automatic storage rack system including the glass storage
with loading table.It's a brand new intelligent and fully automatic system
controlled by software program to realize from storage-transfer-loading-transfer to cutting machine.
单元式电动仓储
产品说明：
激光打标台根据生产订单数据信息打印每片玻璃的打标信息，每片玻璃打标的位置及内容可自定义，支持异形玻璃打标，支持3C、LOGO、二维码等各种信息的打印。设备可配激光码的识别系统，如配对应的识别器可完成激光码的在线识别，支持玻璃在运动中完成识别。
The laser marking system engraves the marking contents according to the order information.The position and marking contents are customized.lt works for marking special-shaped glass,LOGO and QR code.Code can be read online.Its necessary for glass identification in the automation line.
激光打码机/切割打码一体机 Lase

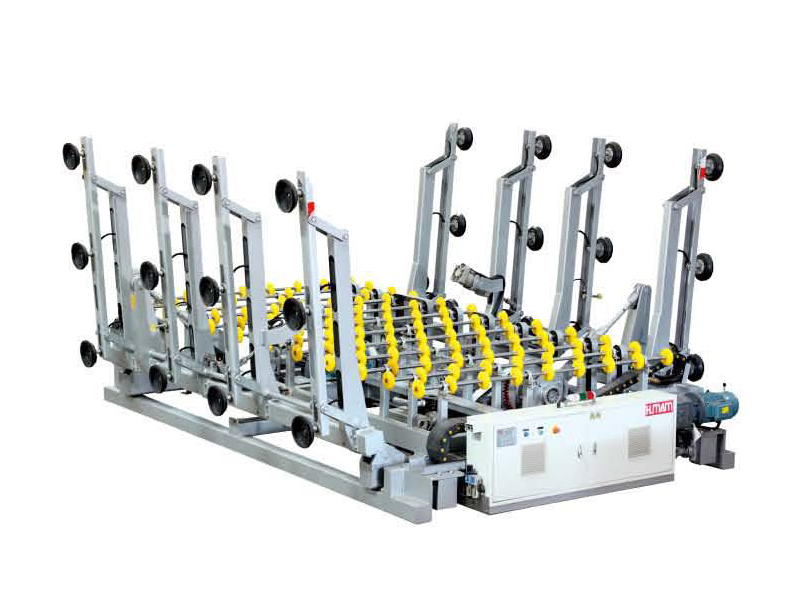

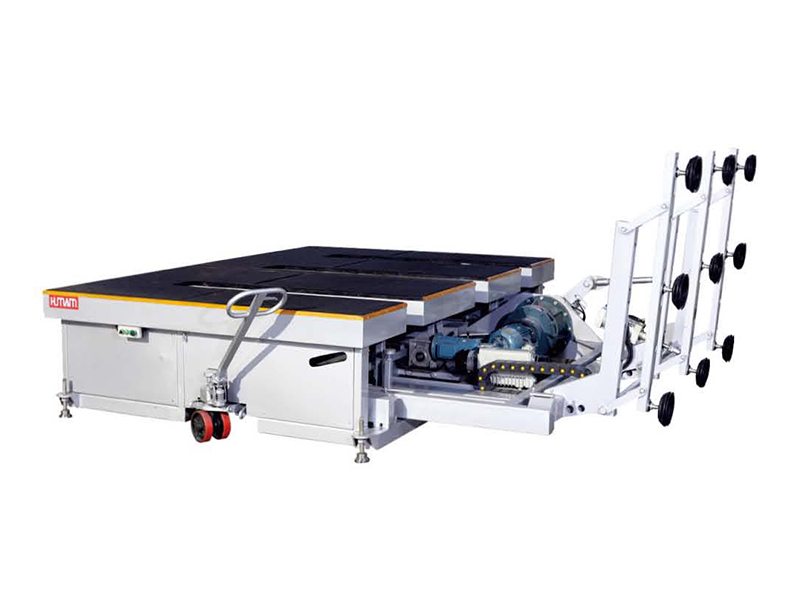

产品说明：
LT-1816上片台+C1816 切割机+BT-2220分片台
LT-1816 Loading table+C 1816 Automotive glass cutting machine+BT-2220 Break out table
最大玻璃Max Glass Size:1800×1600 mm
玻璃厚度Glass Thickness:1.6-6mm
汽车玻璃自动切割线 Automot

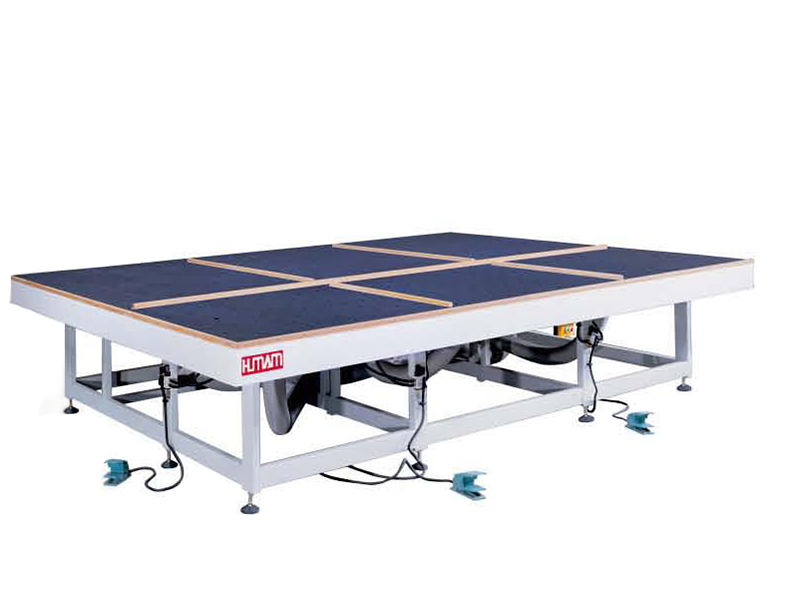

产品说明：

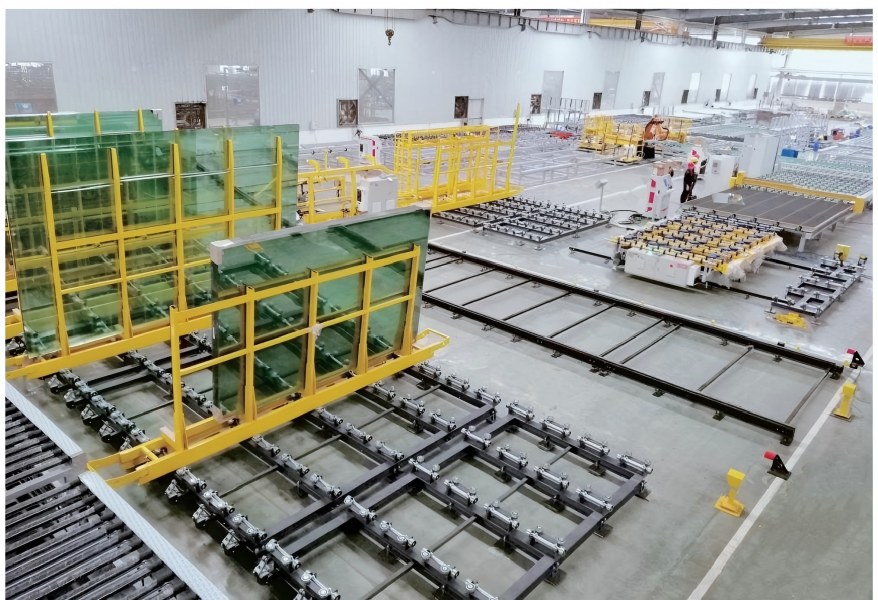

全自动玻璃切割线由自动上片台，切割机和气浮台组成。操作简单，稳定性高，加工速度快，精度高。运用于建筑玻璃，汽车玻璃，中空玻璃，光伏玻璃等玻璃深加工。
Auto glass CNC cutting line is including auto glass loading table, CNC cutting machine and break out table. Easy operation, stable performance, high cutting speed and high accuracy. Widely used in architecture glass, automotive glass, IGU, Solar glass and other glass processing lines .
全自动玻璃切割线 Auto Glas
